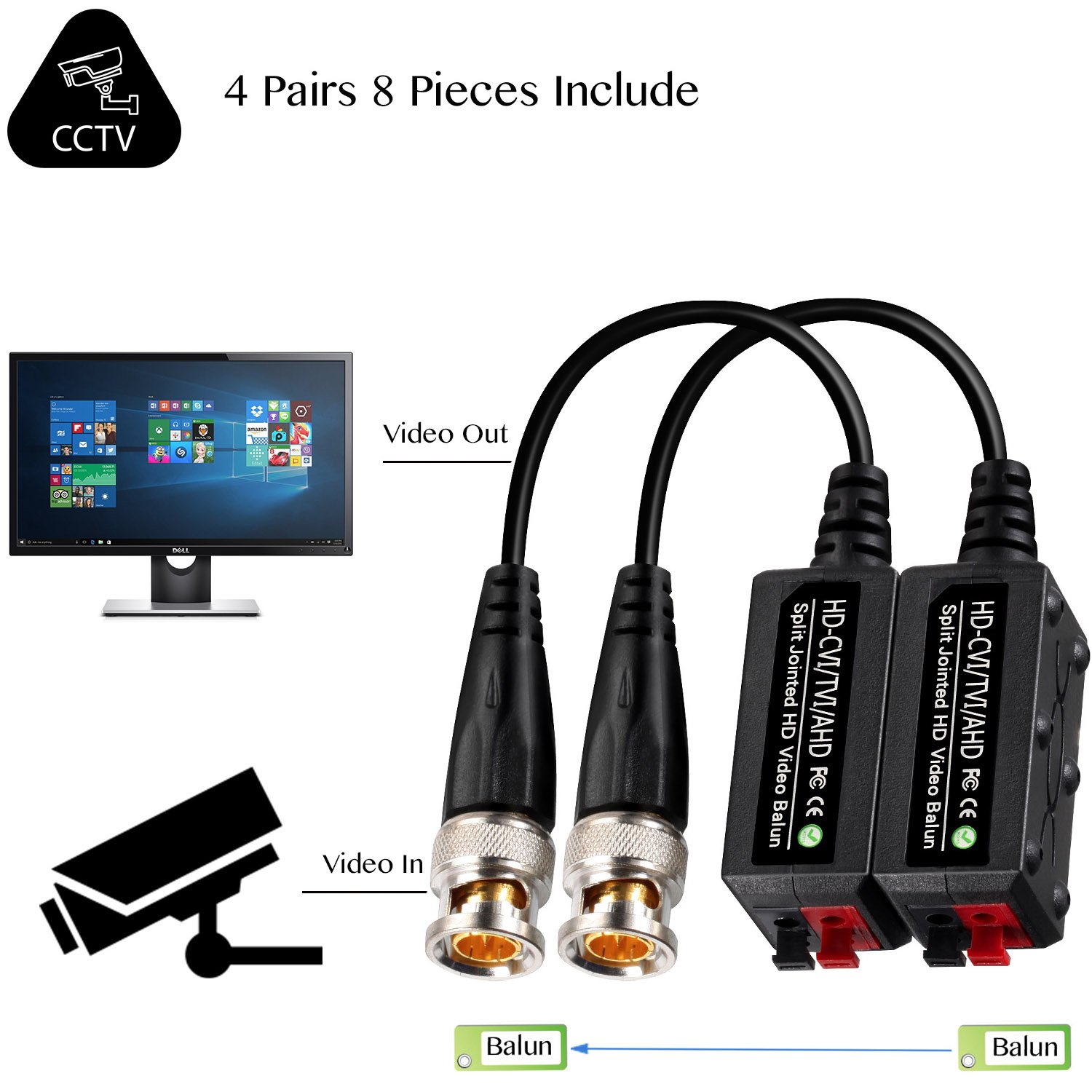

VIMVIP [Upgraded] 4 Pairs Split Joint Mini CCTV BNC HD-CVI/TVI/AHD Passive Video Balun Transceiver (4 Pairs)
Description
- 【“Prees Fit” Terminal Blocks】: Instead of screw installation on UPT terminal blocks, this upgraded VIMVIP Mini HD CCTV Via Twisted Video Balun Transceiver adopted newest “ Prees Fit” screw free installation method, easy to install and save your time, makes the installation work more convenient! 【Innovative Split Jointed Design】: There are 6 small holes and bulgy points set on opposite sides of video balun enable you to combine them together and made a neat line so they are more manageable if more than one video balun is used. 【Safety & Convenience】: Got certificate of the FCC, CE and ROHS. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached. 【Widely Application】: Support all HD-CVI, HD-TVI, HD-AHD, NTSC,PAL, and SECAM video formats. 60 Db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system，gold plated BNC better transmission quality long distance HD transmitter. No power required! 【What you Get】: 4 Pair VIMVIP [Upgraded] Mini HD CCTV Via Twisted HD-CVI/TVI/AHD Passive Video Balun Transceiver BNC Cable Screw Free UTP Terminal Connecter+Installation Specification+1 Year Friendly of Warranty Service.
VIMVIP [Upgraded] 4 Pairs Mini CCTV BNC HD-CVI/TVI/AHD Passive Video Balun Transceiver used Innovative Split Jointed Design and Screw Free UTP Terminal Connecter, the newest generation video balun for you! Features: Compatible with all HD-CVI, HD-TVI, HD-AHD Up to 450m for 720P CVI Cameras Up to 250m for 1080P CVI Cameras Up to 250m for 720P/1080p TVI Cameras Up to 350m for 720P AHD camera NTSC, PAL, and SECAM video formats No power required 60dB cross talk and noise immunity. Compact size and easy installation Built-in transient suppression protection Innovative combinable design Technical Specifications Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge protection:4KV ESD:8KV Connectors: Male BNC and “ Press-Fit” terminal blocks Impedance: BNC: 75ohms Terminal: 100ohms Working Temperature: -10°C to +70°C Storage Temperature: -30°C to + 70°C Humidity : 0 to 95% Dimension: 39mm * 17mm * 19mm (excluding connectors) Material: ABS Plastic Package Include: 1x 4 Pair VIMVIP [Upgraded] Mini HD CCTV Via Twisted HD-CVI/TVI/AHD Passive Video Balun
Reviews
R**R
Five Stars
brilliant save so much time
